Product Description
DISCONTINUED ITEM - This product has now been superseded by the DS76054LK2 which can be found here. Please note the hole positions are not the same.

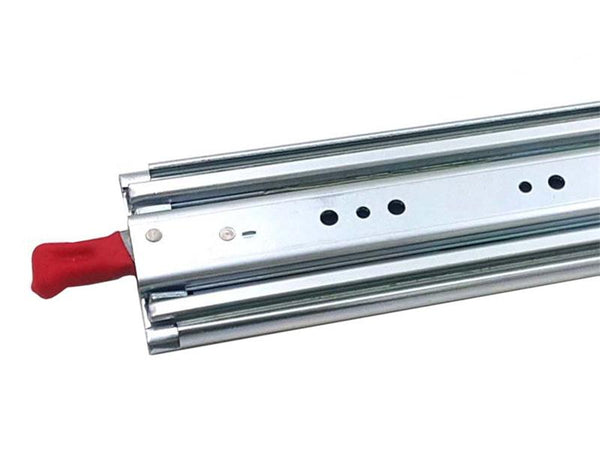

IntAfit 1372mm (54") lock in / out slide is a very competitive double extension cold rolled slide also known as a container slides with a load rating of 170kg based on 50,000 cycles. An additional 32mm total length should be considered when designing for the front locking latch.
Features
- Quick Release: No (due to load rating)
- Closed length: 1372mm (54")
- Open length: 2744mm (108")

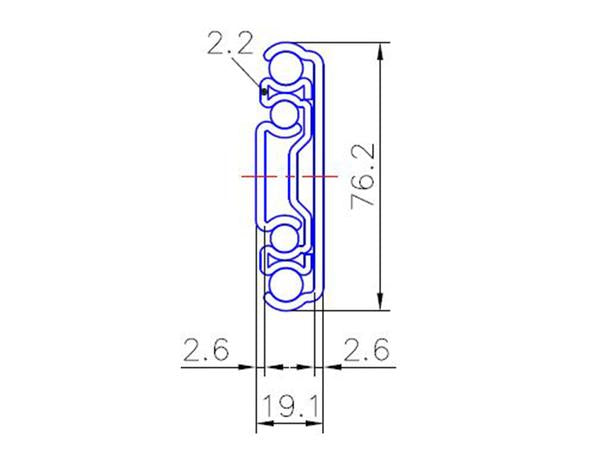

- Profile Height: 76mm
- Profile Width: 19.1mm
- Locking: In and Out
- Load Rating: 170kg (when fully extended)
- Range Sizes: 250 - 1524mm (10" - 60")
- Finish: Zinc Plated
- Fixing Method: Screw or Rivet
- Handed: Yes
- Locking Lever: Both Sides

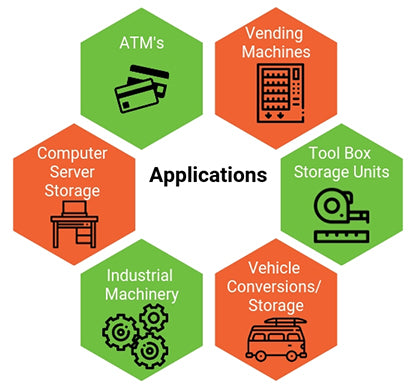

Applications
- ATM's
- Vending machines
- Tool box storage units
- Vehicle conversions
- Vehicle stowage
- Motorhomes
- Under stairs storage
- Computer server storage
- Industrial machinery
Fitting Information:
This type of slide is designed to be used on its side, if used on its flat then the load rating must be reduced by 80% and the locking mechanism will not work,
Recommended screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
6.3mm x 13mm Pozi Countersunk (Pack Of 50)
M6 x 16mm Button Head Socket Screw
Product Code/SKU
DS50054LK
Specification Sheet
Sold As
Pair
-
Extension
100%
-
Features
Lock In/Out
-
Height
76.2mm
-
Length
1524mm
-
Load Rating
150kg
-
Material
cold rolled steel
