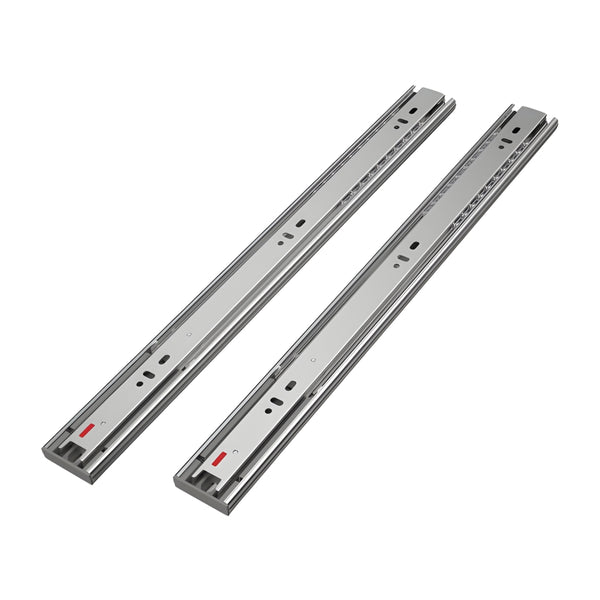

Soft Close Drawer Runner - 500mm - 45kg Load Rating - Full Extension
Code DS55001 · Choose another length or option below; Buy online adds what you have chosen to your basket.
Full product description
Our 500mm Double Extension Soft Close Drawer Runner with a weight bearing capacity of 45KG per pair is classified as a medium duty drawer slide in our range. The quick release lever allows for easy installation and the built in soft close mechanism prevents drawers from slamming shut.
Specifications
- Type: Soft Close
- Finish: Zinc Plated
- Extension: 3 Part Slide (100%)
- Installation: Side Mounted (Product NOT to be Base Mounted)
- Closed Length: 500mm
- Open Length: 1000mm
- Profile Height: 46mm
- Profile Width: 12.7mm
- Drawer Width: (Internal Cabinet Width) 26mm
- Load Rating: 45kg (based on 450mm length)
- Quick Release: Yes
- Range Sizes: 350 - 550mm
- Fixing Method: Screw or Rivet
Applications
- Office Furniture
- Bedroom Furniture
- Tool box storage units
- Vehicle Conversions
- Caravans
- Motorhomes
- Computer server storage
- Shop Fitting
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
