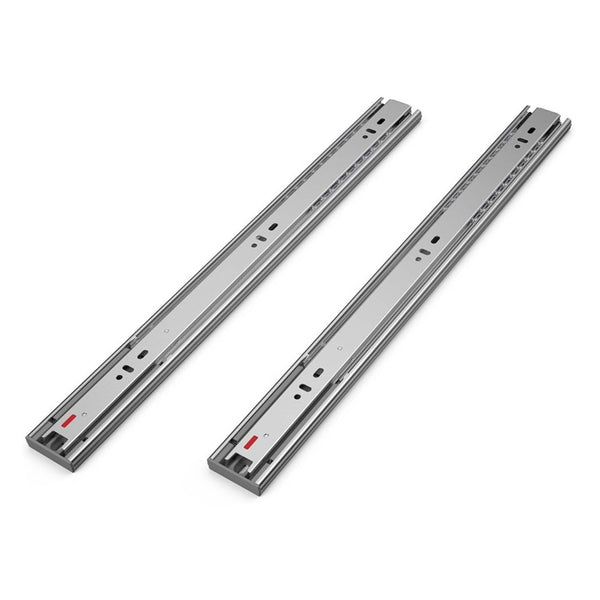

Push to Open & Soft Close Drawer Runners 600mm - Bright Zinc Plated - 30kg - Full Extension
Full product description
Our Ball Bearing Push to Open Soft Close Drawer Runner allows for handle free access and a seamless finish to any storage unit.
In order to use the push to open feature of these runners, you will need to push level to where the runners are installed. The soft close function prevents the drawer from slamming shut.
When installing these runners, the gap between the drawer side and carcass has to be precisely 12.7mm as the tolerance is very small. Please allow 3/4mm between the carcass wall and drawer front when installing. After you have pushed the drawer, you may feel a slight resistance when opening, this is the Soft Close mechanism activating.
*The mechanism colour is subject to change.
Specifications
- Type: Push to Open Soft Close
- Finish: Zinc Plated
- Extension: 3 Part Slide 100%
- Installation: Side Mounted (Product NOT to be Base Mounted)
- Closed Length: 600mm
- Open Length: 1200mm
- Profile Height: 46mm
- Profile Width: 12.7mm
- Drawer Width: (Internal Cabinet Width) 26mm
- Load Rating: 45kg (Based on 450mm)
- Push Open Travel Distance: 25mm
- Range Sizes: 300 - 600mm
- Fixing Method: Screw or Rivet
Suitable For
- Kitchens
- Bedrooms
- Living Rooms
- Understairs Storage
- Office Furniture
- Bedroom Furniture
- Commercial Unit
*Please note: this product is not to be used in vehicles
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
