Heavy Duty Drawer Runner 550mm - 100kg - Full Extension
Full product description
The Eurofit Series DS53 is a heavy-duty, full-extension ball bearing drawer runner engineered for demanding commercial and industrial applications. Featuring a 3-part slide mechanism with 100% extension, this 550mm runner provides complete drawer access with a load rating of 100kg. Cold-rolled steel construction with bright zinc plating delivers excellent corrosion resistance and long service life.
This load rating makes the runner ideal for tool storage, vehicle conversions and heavy-duty cabinetry, with a quick-release lever disconnect to simplify installation and drawer removal. For alternative fixing options please see the Fitting, brackets & screws section below, or contact our sales team for technical drawings, STEP 3D files and trade pricing.
* Load ratings decrease with runner length. Runners sold in pairs. Drawer width = internal cabinet width - 38.4mm +/- 2mm.
+Features & applications
Applications
Key features
- ✓100% full extension for complete drawer access
- ✓Heavy duty 120kg load rating at 450mm length
- ✓3-part slide mechanism for smooth operation
- ✓Available in 11 lengths from 350mm to 1200mm
- ✓Bright zinc plated for corrosion resistance
- ✓Side mounted installation — screw or rivet fixing
- ✓Low 53mm profile height minimises drawer clearance

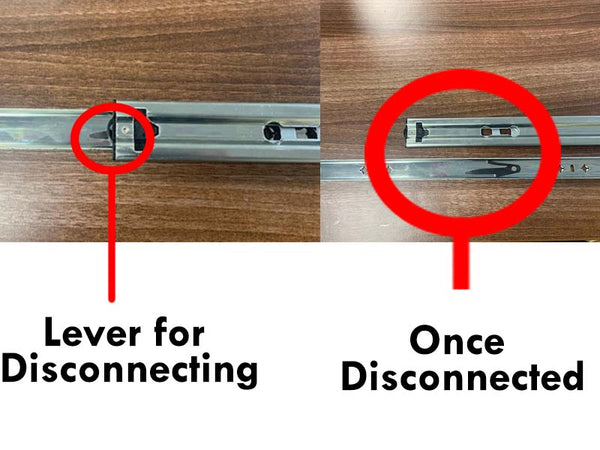

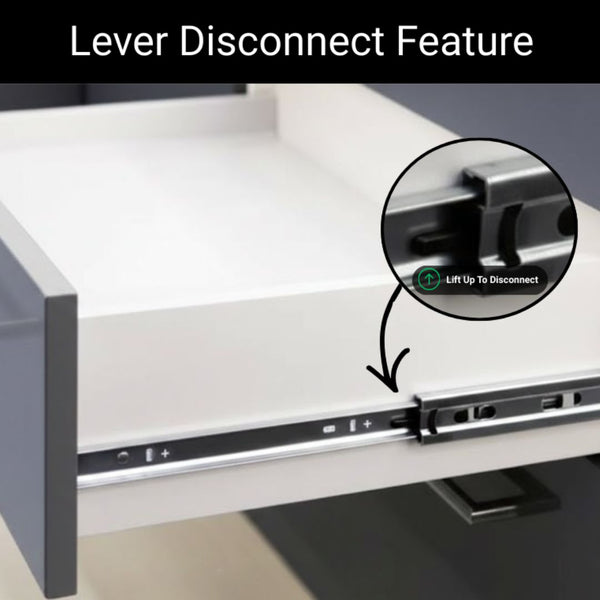

- ✓Quick release lever disconnect
- ✓Suitable for industrial, commercial and domestic use
+Customer installations
Series DS53 runners fitted by Gearmate in their Land Rover Defender drawer system. Photos courtesy of Gearmate.
Click a photo to see it full size.
+Dimensions & sizes
Dimensions

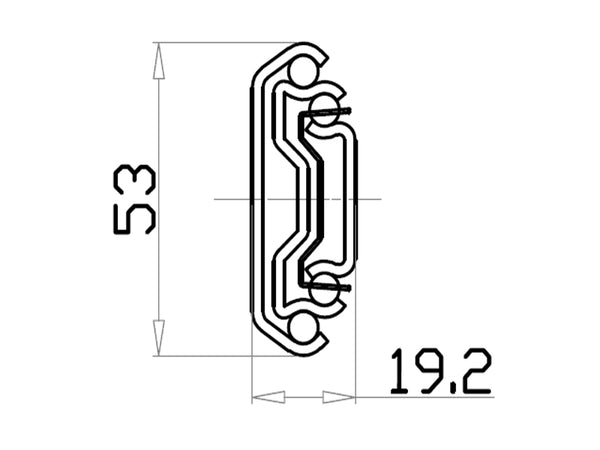

Cross section: 53mm high x 19.2mm wide. Letters A to G on the side view are the fixing-hole positions in the table below (D = drawer member, C = cabinet member).
Product codes & specifications (all measurements in mm)
| Code | Length | Load (kg) | Defl. (mm) | Travel | 1st(D) | 1st(C) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DS53035 | 350 | 110 | 14 | 350 | 35 | 35 | 256 | — | — | 224 | — | — | — |
| DS53040 | 400 | 115 | 15 | 400 | 35 | 35 | 96 | 288 | — | 288 | — | — | — |
| DS53045 | 450 | 120 | 15 | 450 | 35 | 35 | 128 | 320 | — | 192 | 320 | — | — |
| DS53050 | 500 | 110 | 15 | 500 | 35 | 35 | 160 | 384 | — | 224 | 384 | — | — |
| DS53055 | 550 | 100 | 14 | 550 | 35 | 35 | 160 | 416 | — | 256 | 416 | — | — |
| DS53060 | 600 | 95 | 15 | 600 | 35 | 35 | 192 | 480 | — | 256 | 416 | 480 | — |
| DS53065 | 650 | 90 | 15 | 650 | 35 | 35 | 224 | 384 | 512 | 192 | 288 | 448 | 512 |
| DS53070 | 700 | 85 | 15 | 700 | 35 | 35 | 224 | 416 | 576 | 192 | 320 | 480 | 576 |
| DS53075 | 750 | 80 | 16 | 750 | 35 | 35 | 224 | 448 | 608 | 192 | 352 | 512 | 608 |
| DS53080 | 800 | 75 | 16 | 800 | 35 | 35 | 224 | 480 | 672 | 192 | 384 | 544 | 672 |
| DS53120 | 1200 | 52 | 19 | 1200 | 35 | 35 | 224 | 544 | 1088 | 192 | 480 | 672 | 1088 |
This product (DS53055) is highlighted. Click another code to see that length.
+Technical data & ordering
TECHNICAL DATA
- •All dimensions in mm.
- •Deflection measured under rated load at full extension.
- •First hole for cabinet member 37mm from front edge
ORDERING GUIDE
- •Runners sold in pairs (2)
- •One pair per drawer
- •Allow clearance per drawer width formula
FURTHER INFORMATION
- •Full technical datasheet available on request including load curves, fixing details, and installation instructions.
- Download the specification sheet (PDF)
+Fitting, brackets & screws
Load Information
The load rating above is measured with the runner fully extended under an evenly distributed load. The actual safe working load for your project will also depend on drawer size, fixing method and how the load is distributed, so we cannot give an exact figure for a specific installation.
Fitting Information
Side mounted (product not to be base mounted). For alternative fixing options see the following mounting bracket sets:
Side Mounting Bracket Set For DS53055
Bottom Mounting Bracket Set For DS53055
Base Mounting Bracket Set For DS53055
Locking handles:
Front Mounted Locking Handle
Rear Mounted Locking Handle
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
6.3mm x 13mm Pozi Countersunk (Pack Of 50)
Additional Products
Push to Open Touch Locking Latch (rubber stopper on runner has to be removed for these to work)
