IntAfit Heavy Duty Drawer Runner 227kg (500lbs) - 76 x 1473mm Ext 100%

PAIR
£167.66 (inc VAT)

Product Code: DS76058

In Stock


Product Description

Our IntAfit heavy-duty ball bearing runner offers double extension with a load rating of 227kg when fully extended, these runners are also known as container slides and produced by cold-rolled steel. The drawer runners are designed to be fitted between a drawer and cabinet side, if this assembly is not practical we do have brackets available.




Features:

  • Quick Release: No (due to load rating)
  • Closed length: 1473mm (58")
  • Open length: 2946mm (116")

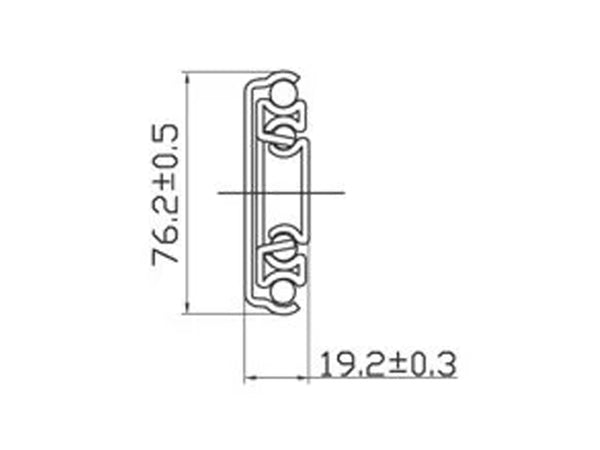

  • Profile Height: 76mm
  • Profile Width: 19.2mm
  • Load Rating: 227kg (based on a 457mm runner)
  • Finish: Zinc Plated
  • Fixing Method: Screw or Rivet



Please note that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.



Push to open and soft close devices are not recommended to be used together with these runners due to the potential load.



Applications:

  • ATM's
  • Vending machines
  • Toolbox storage units
  • Vehicle conversions
  • Vehicle stowage
  • Motorhomes
  • Under stairs storage
  • Computer server storage
  • Industrial machinery



Fitting Instructions

This type of slide is designed to be used on its side, it must not be installed on its base on its own, should you wish to bottom or base mount this slide we recommend the options show below using mounting bracket sets...

Side Mounting Bracket Set For DS76058
Bottom Mounting Bracket Set For DS76058
Base Mounting Bracket Set For DS76058



Recommended screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

M6 x 16mm Button Head Socket Screw

6.3mm x 13mm Pozi Countersunk (Pack Of 50)

M6 x 16mm Button Head Socket Screw and M6 Nylon Insert Nut


Product Code/SKU

DS76058

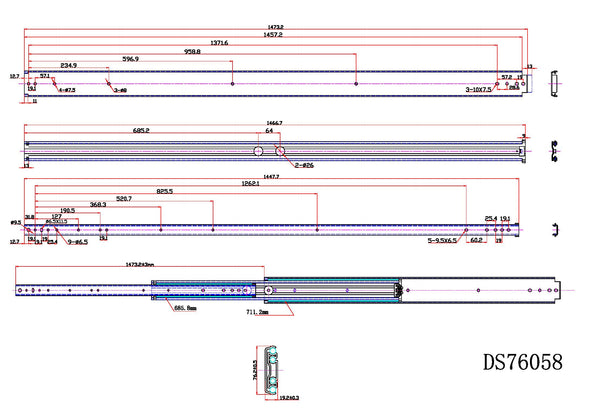

Specification Sheet



Sold As

PAIR


  • Extension

    100%

  • Finish

    Zinc Plated

  • Height

    76.2mm

  • Length

    1473mm

  • Load Rating

    227kg (based on 457mm runner)

  • Material

    Cold Drawn Steel

  • Width

    19.2mm
