Heavy Duty Drawer Runner 305mm - 200kg - Full Extension
Full product description
Our IntAfit heavy-duty ball bearing runner offers double extension, these runners are also known as container slides and produced by cold-rolled steel. The drawer runner is designed to be fitted between a unit side and a drawer side.
For alternative fixing options please see the "Fitting Brackets" section of the page.

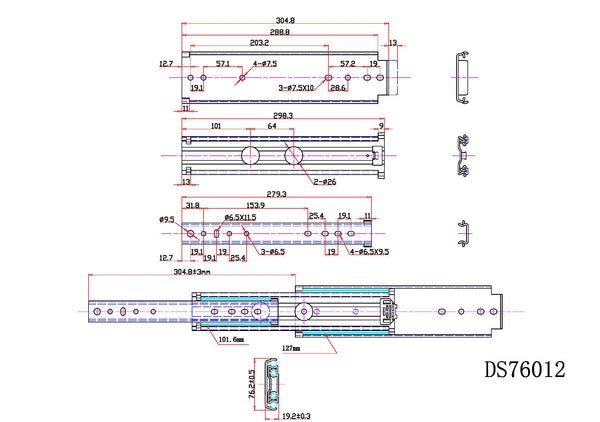

Specifications
- Finish: Bright Zinc Plated
- Extension: 3 Part Slide (100%)
- Installation: Side Mounted (Product NOT to be Base Mounted)
- Closed Length: 305mm (12")
- Open Length: 610mm (24")
- Profile Height: 76mm
- Profile Width: 19.2mm
- Drawer Width: (Internal Cabinet Width) 39mm
- Load Rating: 200kg (when fully extended)
- Quick Release: No (due to load rating)
- Range Sizes: 250 - 1524mm
- Fixing Method: Screw or Rivet
Applications
- Vehicle and campervan conversions
- Vehicle Storage
- Loft Eaves Storage
- Under stairs storage
- ATM's
- Vending machines
- Toolbox storage units
- Computer server storage
- Industrial machinery
*Please note: that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.
Push to open and soft close devices are not recommended to be used together with these runners due to the potential load.
Fitting Brackets
For alternative fixing options see the following mounting bracket sets...
Side Mounting Bracket Set For DS76012
Bottom Mounting Bracket Set For DS76012
Base Mounting Bracket Set For DS76012
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
6.3mm x 13mm Pozi Countersunk (Pack Of 50)
M6 x 16mm Button Head Socket Screw and M6 Nylon Insert Nut
Additional Products
Push to Open Touch Locking Latch (rubber stopper on runner has to be removed for these to work)
