Heavy Duty Locking Drawer Runner 1473mm - 92kg - Full Extension
Full product description
Our IntAfit locking heavy duty ball bearing runner offers double extension. The runner has a latch for locking the slide in the open and closed position, please allow an extra 32mm for the latch length. These runners are also known as locking container slides and are produced by cold rolled steel.
The drawer runner is designed to be fitted between a unit side and a drawer side. For alternative fixing options please see the "Fitting Brackets" section of the page.
Specifications
- Finish: Bright Zinc Plated
- Function: Lock In / Lock Out
- Handed: Yes (L & R)
- Extension: 3 Part Slide (100%)
- Installation: Side Mounted (Product NOT to be Base Mounted)

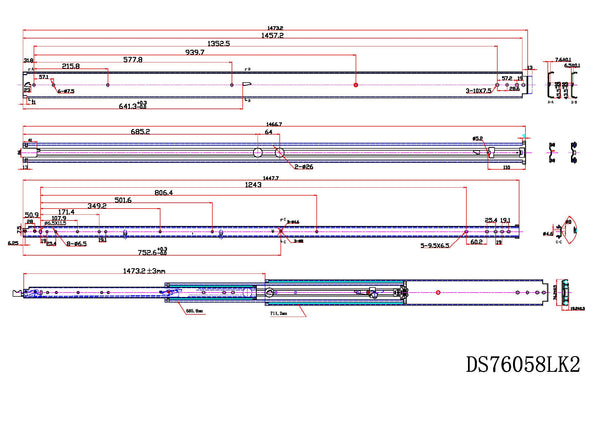

- Closed length: 1473mm
- Open length: 2946mm
- Profile Height: 76mm
- Profile Width: 19.2mm
- Drawer Width: (Internal Cabinet Width) 39mm
- Load Rating: 92kg (when fully extended)
- Quick Release: No (due to load rating)
- Range Sizes: 250 - 1524mm
- Fixing Method: Screw or Rivet
Please note: the runner has a latch for locking the slide in the open and closed position, please allow an extra 32mm for the latch length.
Applications
- Office Furniture
- Bedroom Furniture
- Tool box storage units
- Vehicle conversions
- Caravans
- Motorhomes
- Computer server storage
- Shop fitting
Load Information
The test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.
Fitting Information
For alternative fixing options see the following mounting bracket sets...
Side Mounting Bracket Set For DS76058LK2
Bottom Mounting Bracket Set For DS76058LK2
Base Mounting Bracket Set For DS76058LK2
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
