Heavy Duty Locking Drawer Runner 1524mm - 92kg - Full Extension
Full product description
Our IntAfit Heavy Duty Locking Drawer Runner offers double extension. The runner has a latch for locking the slide in the open and closed position, please allow an extra 32mm for the latch length. These runners are also known as locking container slides and are produced by cold-rolled steel.
Push to open and soft-close devices are not recommended to be used with these runners due to the potential load rating. The drawer runner is designed to be fitted between a unit side and a drawer side. For alternative fixing options please see the "Fitting Brackets" section of the page.

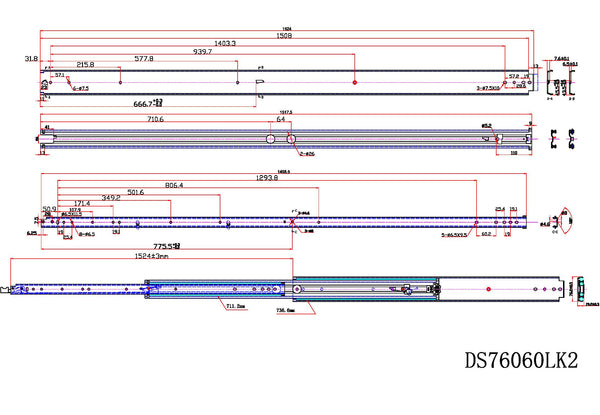

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.
Please click here to view our Help Guides & Advice page.
Specifications
- Finish: Bright Zinc Plated
- Function: Lock In / Lock Out
- Handed: Yes (L & R)
- Extension: 3 Part Slide (100%)
- Installation: Side Mounted (Product NOT to be Base Mounted)
- Closed length: 1524mm
- Open length: 3048mm
- Profile Height: 76mm
- Profile Width: 19.2mm
- Drawer Width: (Internal Cabinet Width) 39mm
- Load Rating: 92kg (when fully extended)
- Quick Release: No (due to load rating)
- Fixing Method: Screw or Rivet
Load Information
*Please note: that test results have been based on a 457mm length runner to 50,000 cycles. Variable factors such as drawer width & length, fixing position, loading weight distribution will affect the load rating. We are unable to provide an exact load for your project due to these variables.
Fitting Brackets
For alternative fixing options see the following mounting bracket sets...
Side Mounting Bracket Set For DS76060LK2
Bottom Mounting Bracket Set For DS76060LK2
Base Mounting Bracket Set For DS76060LK2
Recommended Screws
Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
6.3mm x 13mm Pozi Countersunk (Pack Of 50)
M6 x 16mm Button Head Socket Screw
