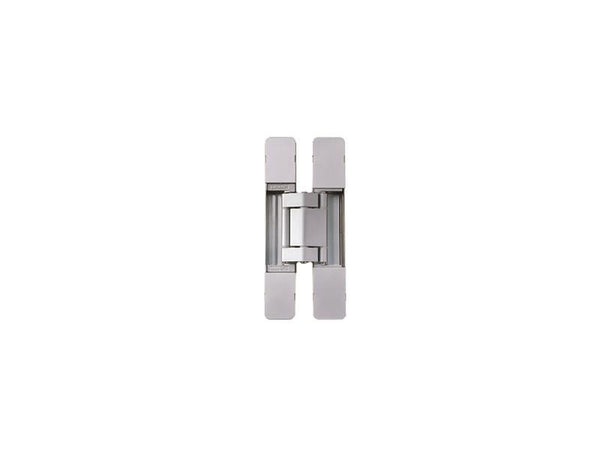

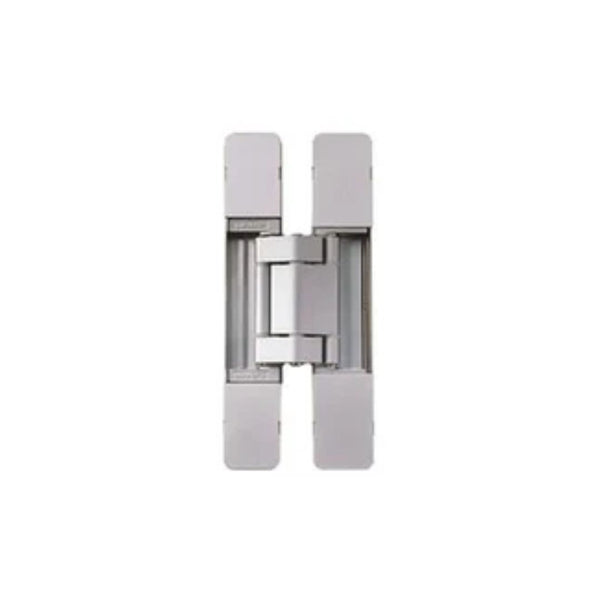

Sugatsune 3D Concealed Door Hinge - 100kg - Silver

Sugatsune 3D Concealed Door Hinge - 100kg - Silver

Each
£59.51 (inc VAT)

Product Code: SG025498

Only 4 left in stock.

Product Description

Sugatsune 3D Concealed Door Hinge - 100kg - Silver are attractive in situations where perfect fit on large or heavy doors is important. The hinges allow a complete 180 degree opening and can be position adjusted on all three axes with the supplied hex key. To enable easy installation the hinge separates from the door frame side base plate which is then installed in the door frame. With the hinge installed in the door the door can be easily and temporarily hung whilst adjustments are made. Finally the screws are tightened and the cover plates are replaced.This is a robust unit made from zinc alloy castings with aluminium arms on stainless steel shafts.



Features

  • Overall Height: 190mm
  • Width: Door 32mm / Frame 34mm
  • Min Door Thickness: 38mm
  • Door Weight: 100kg for 2 hinges & 125kg for 3 hinges
  • Material: Zinc Alloy with S/S Shaft
  • Finish: Silver
  • Opening Angle: 180 Degrees
  • Brand: Sugatsune
  • Use: Interior
  • Cycle Test: Passed 300,000
  • Pack Quantity: 1 Hinge
  • Screws included



Similar Products

Sugatsune 3D Concealed Door Hinge - 12kg - Satin Gold

Sugatsune 3D Concealed Door Hinge - 30kg - Black

Sugatsune 3D Concealed Door Hinge - 30kg - Silver

Sugatsune 3D Concealed Door Hinge - 30kg - Satin Gold

Sugatsune 3D Concealed Door Hinge - 100kg - Satin Gold


Product Code/SKU

SG025498


Product Spec Sheet / Fitting Instructions



Sold As

Each


  • Finish

    Silver

  • Size

    190mm

  • Type

    Adjustable
