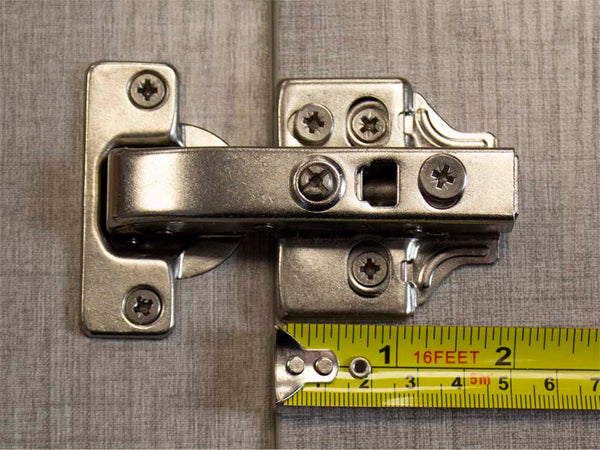

Tutti Cabinet Hinge Blind Corner 110° Pair

PAIR
£6.34 (inc VAT)

Product Code: HFB0113

In Stock


Product Description

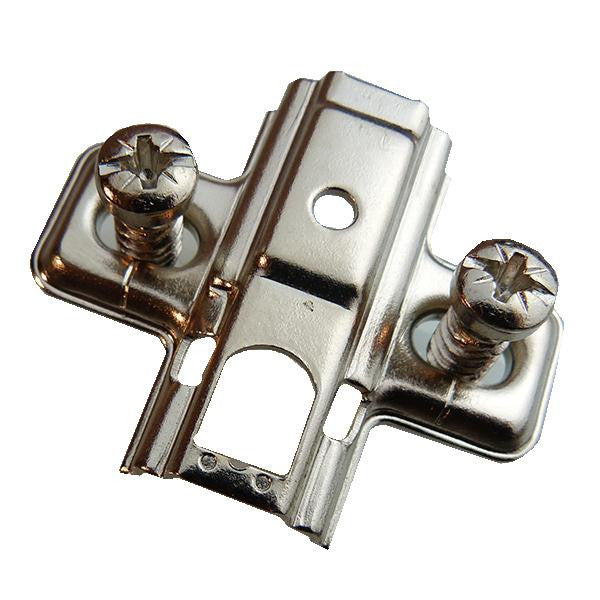

Tutti Blind Corner Kitchen / Cabinet hinge used when there is no right angle cabinet side to fix to, the mounting plate fixes to the inside face of a frontal. The mounting plate comes with pre-mounted euro-screws that require a 5mm diameter hole, they can be removed if not required, these hinges are mainly found in kitchen and bedroom furniture.



The chart below shows what overlay you will get if you change how far you drill the 35mm hole (cup drilling) from the edge of the door using the supplied mounting plate. (Measurements are in mm)



Cup Drilling 4 5
Door Overlay 0.8 0.8
Plate Position 20 19





Features

  • Angle: Blind Corner
  • OverlayAdjustment: +/- 2mm
  • Opening Angle: 110 degrees
  • Door Thickness: 14 - 24mm

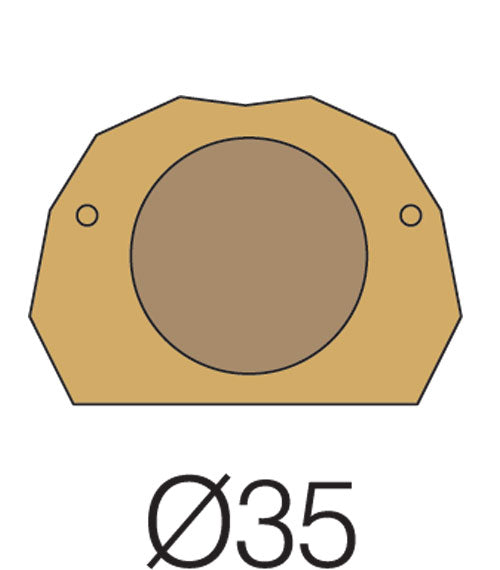

  • Cup Diameter: 35mm
  • Cup Drilling Depth: 11.5mm
  • Hinge Type: Clip On
  • Material: Steel
  • Finish: Nickel Plated
  • Self Closing: Yes
  • Soft Closing: No
  • Adjustment: 3 way
  • Pack Contents: 2 Hinges & 2 Mounting Plates



Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc



Other Angled Hinges

Clip On 30 Deg Angle Hinge - 110 Deg

Soft Close Clip On 30 Deg Angle Hinge - 105 Deg

Clip On 45 Deg Angle Hinge - 110 Deg

Soft Close Clip On 45 Deg Angle Hinge - 105 Deg

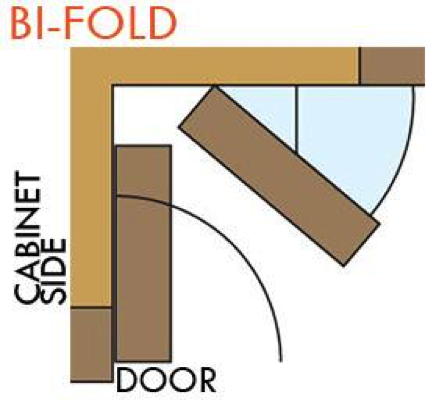

Clip On Bi-Fold Corner Hinge - 110 Deg

Soft Close Clip On Blind Corner Hinge - 105 Deg




Product Code/SKU

HFB0113


Specification Sheet



Sold As

PAIR


  • Carcass Thickness

    18 - 19mm

  • Corner Hinges

    Blind Corner

  • Cup Size

    35mm

  • Door Thickness

    15 - 19mm

  • Finish

    Nickel Plated

  • Opening Angle

    90 - 110 Deg

  • Type

    Clip On

Have you used our Hinge Helpdesk to check this is the correct hinge required?

Not sure what these hinge terms mean? View our tips for identifying hinges
