Ball Bearing 45kg Drawer Slide 46 x 550mm Ext 100%

PAIR
£5.93 (inc VAT)

In Stock

Product Description

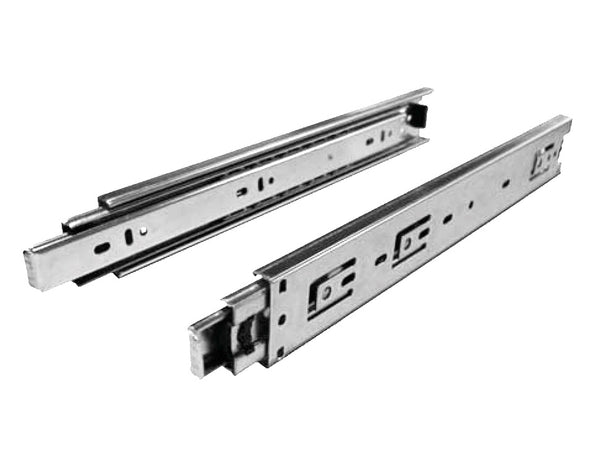

IntAslide 46 x 550mm full extension medium duty ball bearing zinc plated drawer slide with quick release. Load capacity is 45kg based on a 450mm length slide, closed length of slide is 550mm and fully extended 1100mm allowing the drawer to extend fully from the cabinet. As the slide has the quick release feature you are able to disconnect the inner member allowing you to fit the outer member (46mm profile) to the cabinet side, inner member to the drawer side and then slide the drawer in place. To calculate the drawer width required you need to take the inside cabinet width minus 25mm (12.5mm each side).

Features

  • Inner member disconnect
  • Closed length 550mm
  • Open length 1100mm
  • Profile 46 x 12.5mm
  • Load rating 45kg (based on 450mm length)
  • Range 250 - 700mm

Applications

  • Office Furniture
  • Bedroom Furniture
  • Tool box storage units
  • Vehicle conversions
  • Caravans
  • Motorhomes
  • Computer server storage
  • Shop fitting

Recommended screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

Alternative products

Ball Bearing 45kg Soft Close Drawer Slide 46x550mm Ext 100%

Ball Bearing 120kg Drawer Slide 56 x 550mm Ext 100%

Ball Bearing 250kg Drawer Slide 76 x 559mm Ext 100%



Are you a trade customer who needs a constant supply of this product? Contact our sales team at sales@eurofitsystems.com or 01482 714488


Product Code/SKU

DSB0004


Product Spec Sheet / Fitting Instructions



Sold As

PAIR


  • Extension

    100%

  • Finish

    Zinc Plated

  • Height

    46mm

  • Length

    550mm

  • Load Rating

    45kg

  • Material

    cold rolled steel

  • Width

    12.7mm
